Mercedes-Benz C-Class (W205) 2015 - 2021 Owners Manual: Menus and submenus

Functions on the service menu of the onboard computer

On-board computer: Service

• To select the function: swipe upwards or downwards on the left-hand Touch Control.
• Press the left-hand Touch Control.

Functions on the Service menu:

• Message memory
• Tires:
  • Restart the tire pressure loss warning system
  • Check the tire pressure with the tire pressure monitor
  • Restart the tire pressure monitor
• ASSYST PLUS: calls up the service due date
• Vehicles with a Widescreen Cockpit: Coolant: coolant temperature display
• Engine Oil Level: engine oil level

Calling up the assistance graphic

On-board computer: Assistance

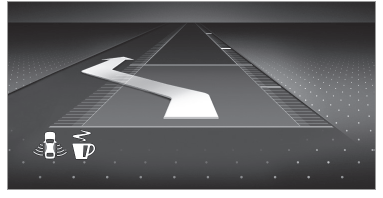

The following displays are available on the assistance graphic menu:

• Assistance graphic
• Attention level

• To switch between the displays: swipe upwards or downwards on the left-hand Touch Control.

Status displays on the assistance graphic:

• ATTENTION ASSIST: deactivated

• Light lane markings: Active Lane Keeping Assist enabled

• Green lane markings: Active Lane Keeping Assist active

• Gray radar waves next to vehicle: Blind Spot Assist or Active Blind Spot Assist enabled

• Green radar waves next to vehicle: Blind Spot Assist or Active Blind Spot Assist active

• Active Distance Assist DISTRONIC displays

• Active Lane Change Assist displays

Calling up displays on the trip menu

On-board computer: Trip

You can view information about the journey in the left-hand area of the Instrument Display.

• To select a display: swipe upwards or downwards on the left-hand Touch Control.

Displays on the Trip menu:

• Standard display
• Range and current fuel consumption
  If there is only a small amount of fuel left in the fuel tank, the display will show a vehicle being refueled instead of the range.
• ECO display
• Trip computer From Start and From Reset
• Digital speedometer

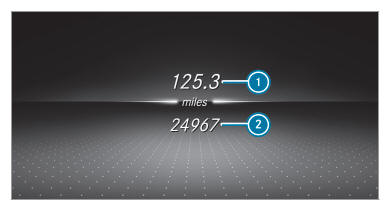

Example: standard display

1. Trip distance
2. Total distance

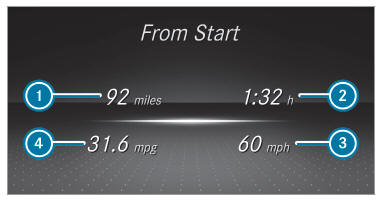

Example: trip computer

1. Total distance
2. Driving time
3. Average speed
4. Average fuel consumption

Resetting values on the trip menu of the onboard computer

On-board computer: Trip

The spelling on the main menu displayed may differ. Therefore, observe the menu overview for the Instrument Display.

You can reset the values of the following functions:

• Trip distance
• Trip computer From Start and From Reset
• ECO display

• To select the function to be reset: swipe upwards or downwards on the left-hand Touch Control.
• Press the left-hand Touch Control.
• Select Yes .
• Press the left-hand Touch Control.

If you press and hold the left-hand Touch Control, the values of the function will be reset immediately.

Calling up navigation instructions on the onboard computer

On-board computer: Navigation

Example: no change of direction announced

1. Distance to the next change of direction
2. Distance to the next destination
3. Estimated arrival time at next destination
4. Current road

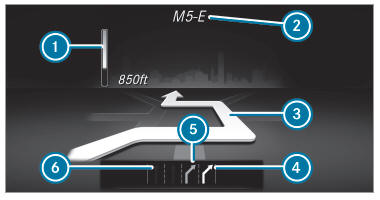

Example: change of direction announced

1. Distance to the change of direction
2. Road to which the change of direction leads
3. Change-of-direction symbol
4. Recommended lane (white)
5. Possible lane
6. Lane not recommended (dark gray)

Further possible displays on the Navigation menu:

• Direction of Travel: display of direction of travel and road currently being traveled on.
• New Route... or Calculating Route...: a new route is being calculated.
• Road Not Mapped: the road is unknown, e.g.for newly built roads.
• No Route: no route could be calculated to the selected destination.
• Off Map: the map for the current location is not available.
• Area of Destination Reached: you have reached the area of the destination.
• : you have reached the destination or an intermediate destination.

• To exit the menu: press the back button on the left.

Vehicles with the COMAND multimedia system: You can also start navigation to one of the recent destinations on the Navigation menu:

• Press the left-hand Touch Control.
• To select a destination: swipe upwards or downwards on the left-hand Touch Control.
• Press the left-hand Touch Control.

  Route guidance is started. If route guidance has already been activated, a request will appear asking whether you wish to end the current route guidance.

• Select Yes.
• Press the left-hand Touch Control.

  Route guidance is started.

Selecting radio stations using the on-board computer

On-board computer: Radio

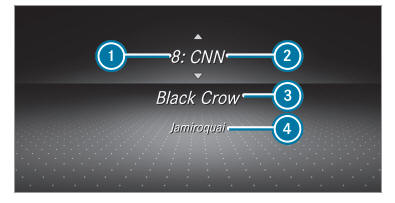

1. Memory preset
2. Channel name
3. Name of track
4. Name of artist

When you select a station from the memory presets, the preset will appear next to the station name. When you select a saved station in the frequency range, an asterisk will appear next to the station name.

• To select a radio station: swipe upwards or downwards on the left-hand Touch Control.

Selecting the frequency range or memory preset

• Press the left-hand Touch Control.
• To select the frequency range/station preset: swipe upwards or downwards on the left-hand Touch Control.
• Press the left-hand Touch Control.

Media playback using the on-board computer

On-board computer: Media

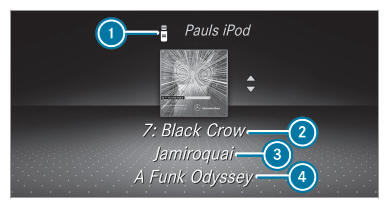

1. Media source
2. Track number and current track
3. Name of artist
4. Name of album

• To change tracks on an active media source: swipe upwards or downwards on the left-hand Touch Control.

Changing a media source

• Press the left-hand Touch Control.
• To select a media source: swipe upwards or downwards on the left-hand Touch Control.
• Press the left-hand Touch Control.

Dialing telephone numbers using the onboard computer

When telephoning, you must observe the legal requirements for the country in which you are currently driving.

Requirements:

• The mobile phone is connected to the multimedia system.

On-board computer: Phone

Vehicles with the COMAND multimedia system: The most recent telephone calls (dialed, received and missed calls) are displayed on the Phone menu.

• To select an entry: swipe upwards or downwards on the left-hand Touch Control.
• Press the left-hand Touch Control.

  If there is only one telephone number saved to an entry: the telephone number will be selected.

• If there are multiple telephone numbers saved to an entry: swipe upwards or downwards on the left-hand touch control to select the desired telephone number.
• Press the left-hand Touch Control.

  The telephone number will be dialed.

The following displays may appear instead of the telephone numbers dialed:

• Please Wait...: the application is starting. If a Bluetooth connection to the mobile phone is not established, the menu for authorizing and connecting a mobile phone will be displayed on the multimedia system.
• Updating data...: the call list is being updated.
• Importing Contacts...: contacts are being imported from the mobile phone or a storage medium.

Accepting/rejecting a call Vehicles with Head-up Display: when you receive a call, the Incoming Call message will appear on the Head-up Display.

• Swipe upwards or downwards on the left-hand Touch Control and select (Accept) or (Reject).
• Press the left-hand Touch Control.

You may accept/reject the call using button oron the steering wheel.

Adjusting the Head-up Display settings on the on-board computer

On-board computer: HUD

The following Head-up Display settings can be adjusted:

• Position
• Brightness
• Display Content

• To select a setting: swipe upwards or downwards on the left-hand Touch Control.
• Press the left-hand Touch Control.
• To adjust a value: swipe upwards or downwards on the left-hand Touch Control.
• Press the left-hand Touch Control.

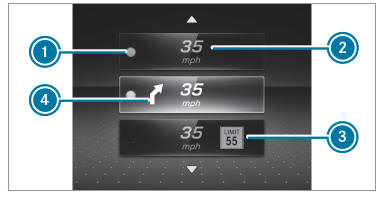

1. Setting currently selected
2. Digital speedometer
3. Traffic Sign Assist
4. Navigation displays
