Mercedes-Benz C-Class (W205) 2015 - 2021 Owners Manual: Interior lighting

Adjusting the interior lighting

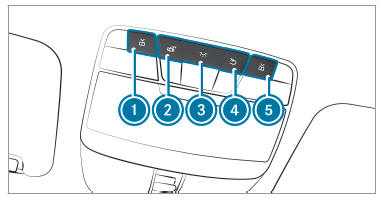

Front overhead control panel

Interior lighting

  1. Front left reading lamp

  2. Automatic interior lighting control

  3. Front interior lighting

  4. Rear interior lighting

  5. Front right reading lamp

  • To switch on or off: press button 1 - 5 accordingly.

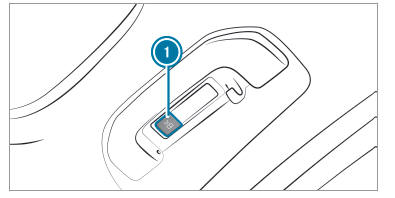

Control panel in the grab handle

Interior lighting

  1. Rear reading lamp
  • To switch on or off: press button 1.

Adjusting the ambient lighting

Multimedia system:

Vehicle → Light Settings → Ambient Light

Setting the color

  • Select Color.
  • Set a color.

Adjusting the brightness

  • Select Brightness.
  • Set a brightness value.

Activating the brightness for zones

  • Select Brightness Zones.
  • Activate or deactivate the function.

    The Display, Front and Rear zones can be set separately.

Setting the interior lighting switch-off delay time

Multimedia system:

Vehicle → Light Settings → Int. Light Switch Off

  • Set the switch-off delay time.
    Exterior lighting

    Changing bulbs (only for vehicles with halogen headlamps)
